Stockyard Hill Wind Farm - Transmission Line Works

Stockyard Hill Wind Farm - Transmission Line Works

Stockyard Hill Wind Farm, located between Beaufort and Skipton in Victoria’s central highlands, is a wind energy development with a capacity of 530MW to power 390,000 homes.

The project will erect 149 units of Goldwind GS140 3s turbines, construct a new terminal station at Haunted Gully and connect over 74kms of transmission lines.

JWA was called on to supply DuraBase matting on a number of different scopes - construction access tracks, transmission line works, turbine construction and trenching for underground line transmissions.  This case study focuses on how composite matting was used for transmission line works.

Challenges faced:

  • Inclement weather affecting site conditions and project schedule.
  • Cultural Heritage Site - areas with underlying archaeological significance as identified by the traditional landowners, the Wathaurong tribe.
  • Known habitat corridor of the endangered Striped Legless Lizard.
  • Protection of native grassland and endangered vegetation - Spiny Rice-flower and White Sunray.

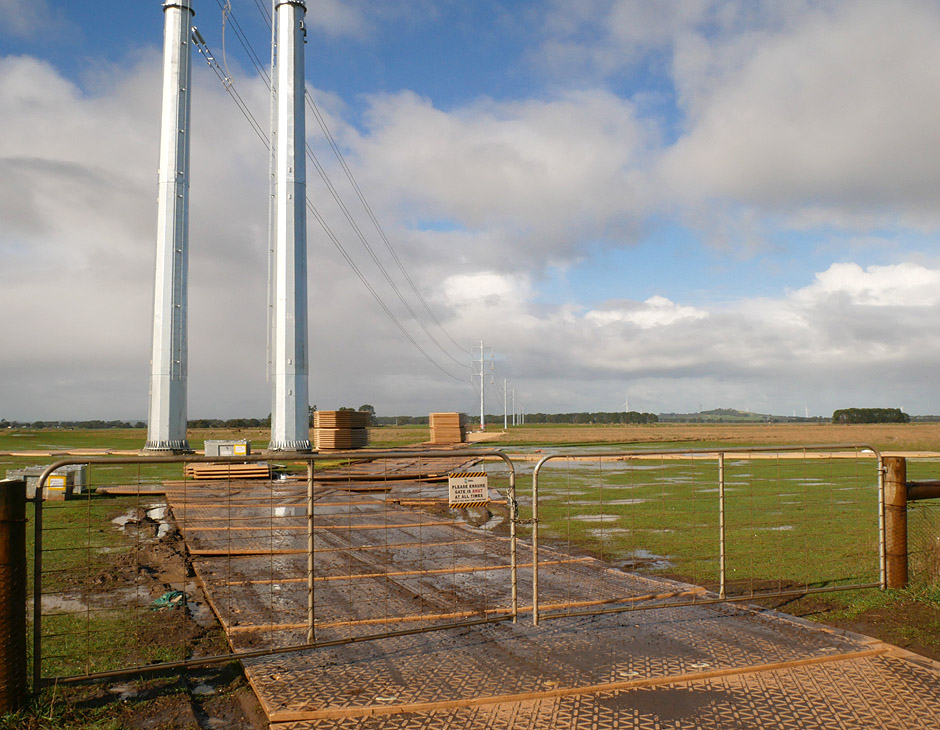

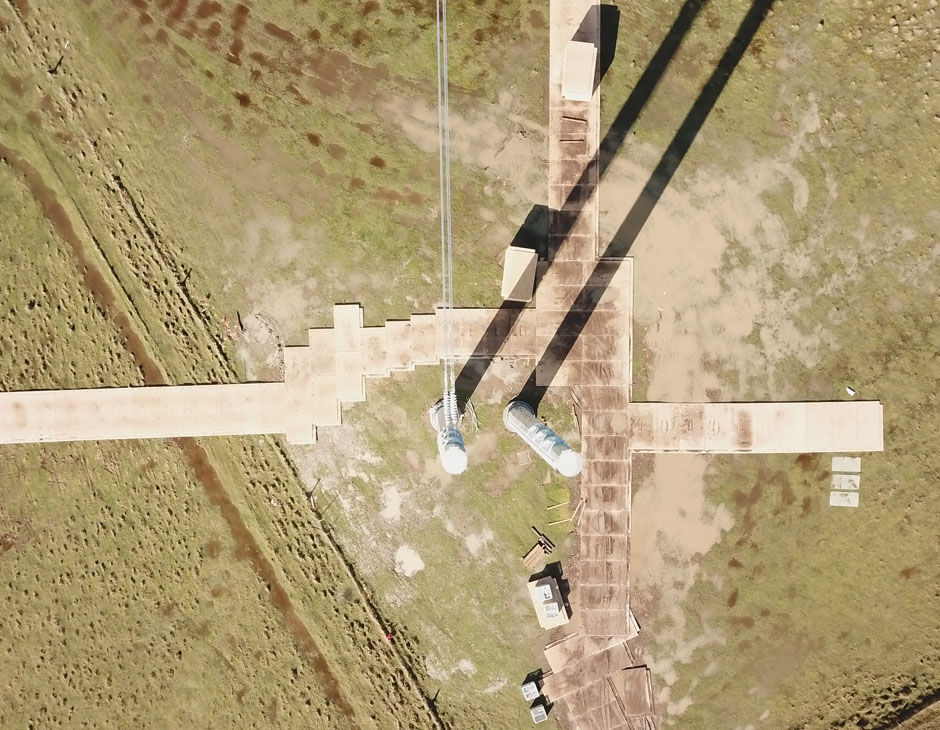

DuraBase composite mats' interlocking feature, combined with its thickness of 105mm, were ideal for creating  a continuous, stable surface with minimal ground disturbance. The almost-instant ground improvement provided safe access for telehandlers, excavators, and heavy lift cranes, while ensuring overhead powerline stringing equipment and cable reels were kept above mud.

Benefits:

  • Flexibility in installation - able to accommodate last minute layout changes as the mats are easily removed and re-installed.
  • Minimal ground preparation and remediation.
  • Waterproof and non-contaminanting.

JWA have a long history of supporting utility and renewable projects with composite matting. Chat to one of our experienced team member today for all your temporary roadway and platform needs.

Enquire now

Case Study Attributes

Project Name
Stockyard Hill Wind Farm - Transmission Line
industry
Renewables
Location
Stockyard Hill, VIC
applications used
Sensitive Site Access, Soft Ground Access, Temporary Laydown, Ground Protection
