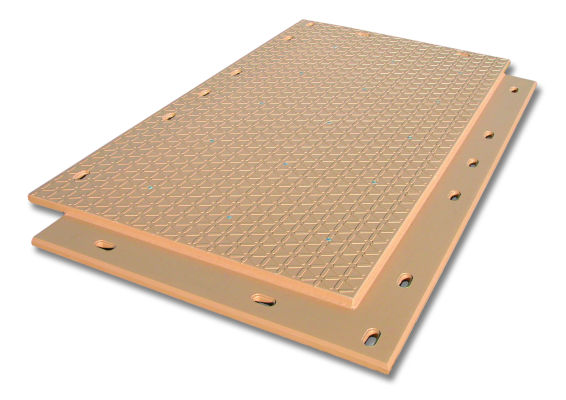

DURA-BASE COMPOSITE MATS

Dimensions:         4.27m (L)  x  2.44m (W)

                                    105mm (H)

Usable Surface:  3.96m (L)  x  2.13m (W)

Weight:                    454 kg

Load rating:           Over 100 tonnes

Pure compressive load capacity is approximately 600 psi (40 kg/cm2).

Benefits

  • Reusable platforms and roads in place of traditional methods of trucking aggregates or building concrete pads
  • With a single semi-trailer can hold up to 420sqm worth of mat coverage, composite matting can reduce or replace the need for single-use materials, reducing overall landfill waste.
  • Reduce emissions from overall truck movements required to deliver, refill and remove the equivalent in aggregates and fill material.
  • Dura-Base mats are made of non-porous HDPE which minimises the risk of cross-contamination while working in sensitive sites.
  • It installs rapidly, forming a protective load-spreading layer to minimise topsoil disturbance during operations.
  • Helps to preserve any underlying plant root substructure for optimal chance of regrowth. It also prevents equipment from rutting the ground and potentially exposing acid sulfate soils to the air.
  • By minimising ground disturbance during construction, Dura-Base reduces remediation works required after completion of the project.
  • Laying down Dura-Base mats does not generate dust compared to the installation and top up of crushed rock pads. They also act as a layer of dust suppression.
  • Dura-Base are reusable over multiple sites and projects. They are made of HDPE which are 100% recyclable after the expected lifecycle of over 15 years under standard use conditions.

Videos

COMPOSITE MATS ON RAIL PROJECTS

Applications of composite mats on rail projects and their advantages - from urgent site access to minimising environmental disturbance.


COMPOSITE MATS ON UTILITIES PROJECTS

Environmental benefits of composite mats for common ground issues encountered during construction of pipelines, transmission lines, substations, solar farms and windfarms.


Wet Weather Mitigation Mats

See how DuraBase matting was used on a residential development site after 10 days of continuous rain.


Useful Links and Documents

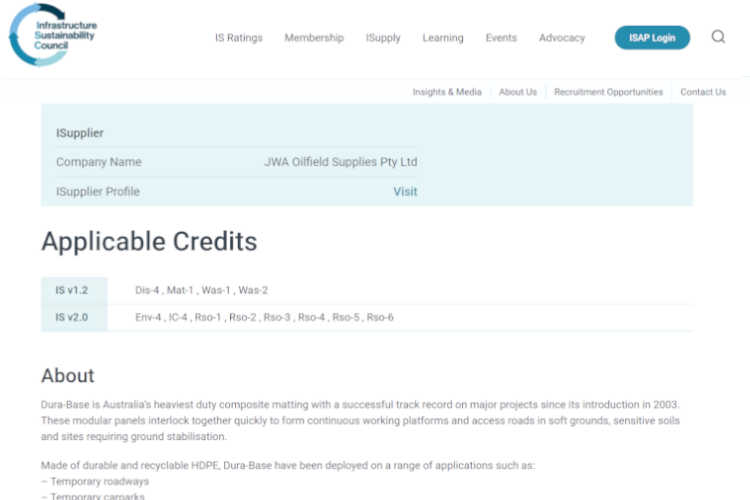

Dura-Base iSupply Listing

DURA-BASE iSupply Listing

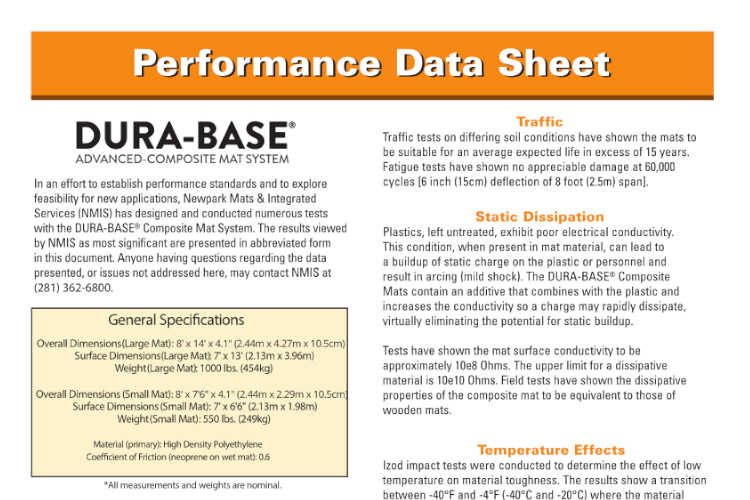

DURA-BASE Performance Data Sheet

DURA-BASE Technical Data sheet


  • 450t Crane Access Installed Overnight
    prev450t Crane Access Installed Overnightnext
  • Temporary Access for Geotechnical Studies
    prevTemporary Access for Geotechnical Studies next
  • Work Platform in Acid Sulfate Soils
    prevWork Platform in Acid Sulfate Soilsnext
  • Stabilised Access for Transmission Line Construction
    prevStabilised Access for Transmission Line Construction next
  • Minimal Ground Disturbance for Powerline Stringing
    prevMinimal Ground Disturbance for Powerline Stringingnext

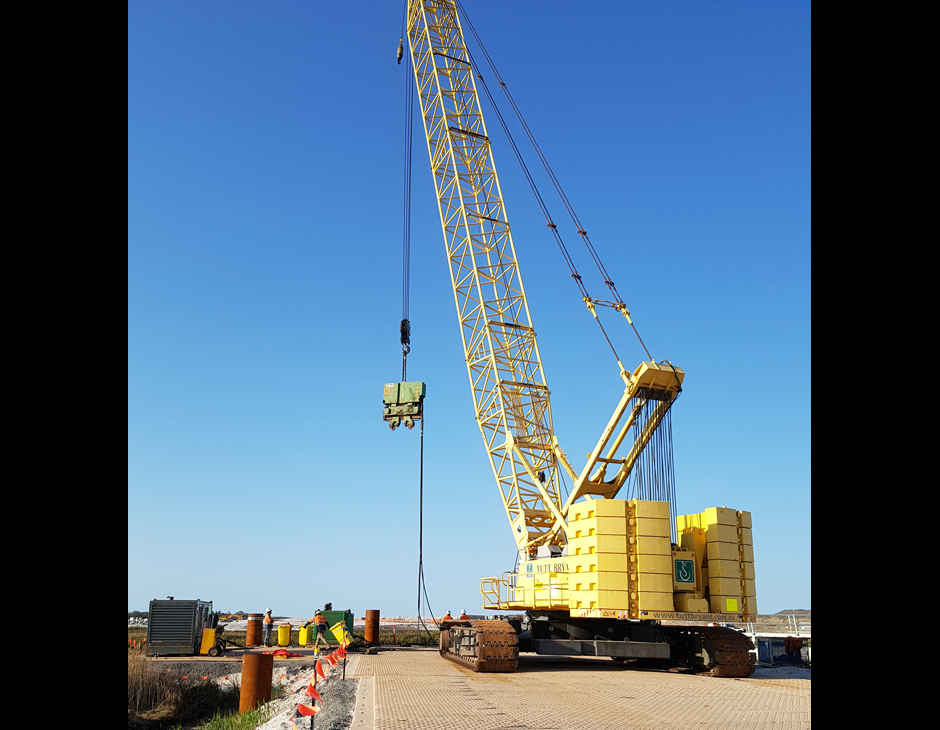

  • Reusable Piling Platform at Brisbane Airport
